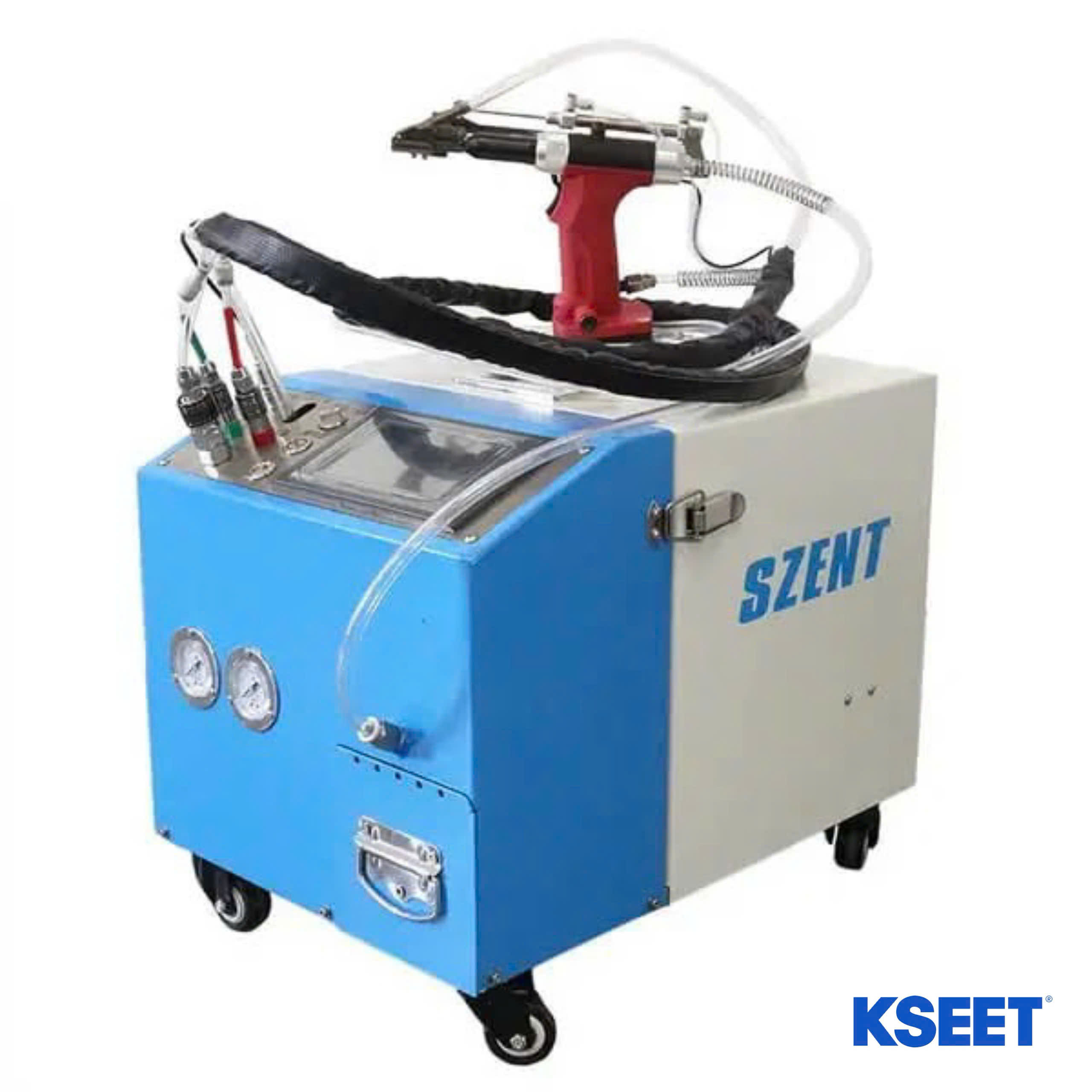

SZENT-AU100 Riveting machine

Technical parameters of rivet machine

Model: SZENT-AU100

Rivet specification: 2.4/3.2/4.0

Working voltage: AC 220V

Working air pressure: 5kgf/cm²

Rated power: 300W

Nail feeding rate: 70 grains/min (the length of the nail feeding tube varies)

Nail feeding distance: within 3M

Equipment size: 490*360*370mm (length*width*height)

Rivet gun: optional

Installation method and steps

1. Take out the main machine and place it on a flat ground or a stable working platform.

2. Insert one end of the rivet delivery pipe into the rivet outlet of the main machine, and the other end into the rivet inlet of the rivet gun.
