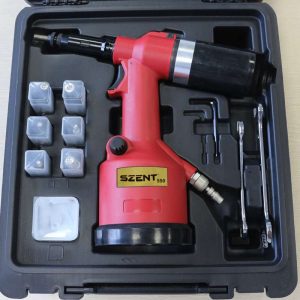

SZENT-550 pneumatic rivet nut gun

Uses

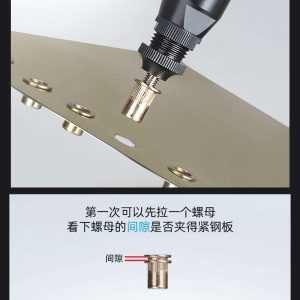

SZENT-550 pneumatic rivet nut gun is used for riveting rivet nuts of various materials such as aluminum, copper, iron, stainless steel, etc. from M3 to M12. Its main body is made of high-quality synthetic materials, with the advantages of light hand-held weight, easy operation, fast riveting speed, tight riveting, and no deadlock. It is an ideal riveting tool for rivet nuts.

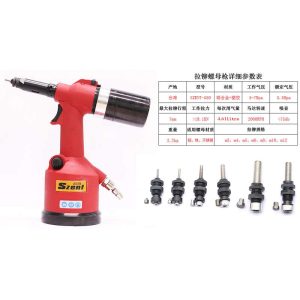

Technical performance parameters of SZENT-550 pneumatic rivet nut gun

Working range: M3-M12

Air source pressure: 5-7bar

Rated pressure: 5.5bar

Riveting stroke: 7mm

Motor speed: 3500rpm

Working tension is not less than: 19.1KN (4300ibf)

Noise is less than: <75dp

Weight: 2.47kg

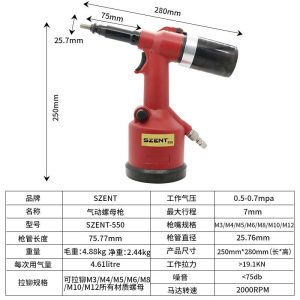

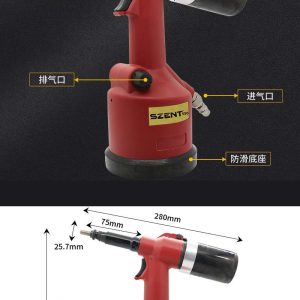

Dimensions: 280*255*115
